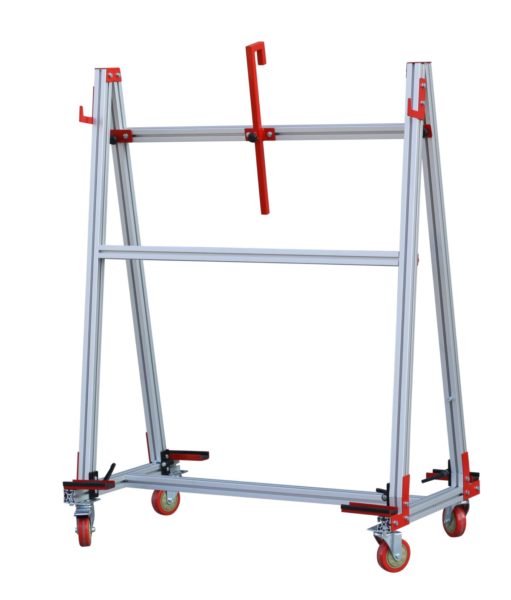

FOLDABLE LARGE FORMAT TILES TROLLEY
- Helps moving and processing on large format porcelain tiles and slabs
- Pivoting gum wheels
- Adjustable hooks to support large format handling systems
- Adjustable security hook
- Foldable structure allowing for easy transport
- Folded size: 110x50x25cm
- Supports slabs up to max 3.5 x 2 m size
- Supports slabs with at least one side min 1 m long
- Max load: 250kg
- Weight: 18kg
Description
Ghelfi’s foldable trolley greatly facilitates moving and processing large format ceramic and porcelain tiles on the bulding site.
It supports tiles and slabs up 3,5 x 2 mt maximum size, and with at least one side longer than 1 mt.
Ghelfi Trolley’s armature is entirely based on extruded aluminum profiles: lightweight yet robust for heavy duty, undeformable, immune to rust.
Horizontal bars can be quickly repositioned by actioning upon their locking knobs, to instantly reconfigure the structure to optimally support different format slabs.

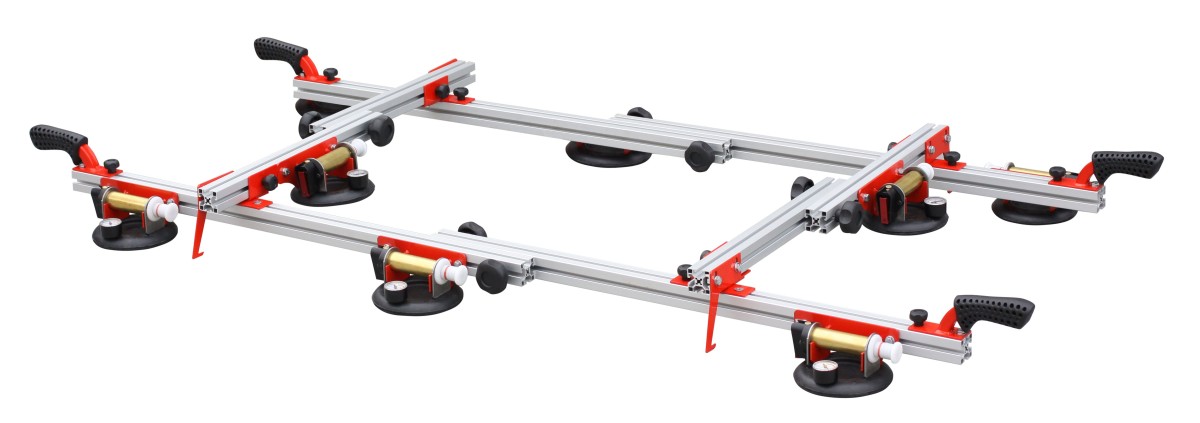

In case of slabs being handled by some suction-cup-based equipment (such as Ghelfi’s own Telescopic Large Formats Handling System, or many third-party similar systems) two repositionable side hooks can be adjusted to safely hang handling system’s bars to the trolley during movement or processing phases.
The same purpose is pursued by the red vertical hook: it can be positioned and fixed in seconds to safely hook a slab laid freehand onto the Trolley.
Four 360°-pivoting gum wheels prove very effective on non perfectly smooth site grounds. Their snap-on locking system is designed to help with slab load/unload, or on-tile adhesive spreading operations.
Unlike most previous generation systems, Ghelfi’s Trolley is quickly foldable at the end of a day’s work. Once folded-in, the Trolley reaches down to a surprisingly compact size (110x50xh25 cm, by just 18kg weight) making it very easy to manipulate, transport, and stock away.
PRODUCT RANGE
| SKU# | DESCRIPTION |
|---|---|
| 1830 | FOLDABLE BIG TILES TROLLEY |
