HELICAL MIXER FOR PLASTER, MORTAR AND ADHESIVES
- Galvanised steel structure.
- Multiple models available: M14 or HEX connector, and paddle Ø 120, 140 or 160mm
- Stem extending throughout the entire paddle length
- Circular and vertical mixing
- Maximum clog removal efficiency
- Recommended for mixing plaster, mortar and adhesives
- Maximum mixing load: 10 – 60 Kg depending on model
Description
Galvanised steel structure. The stem fully extendens into the stirrer to guarantee superior strength and undeformability over time. The ring soldered on stirrer’s bottom reduces mechanical impact on the bucket.
Mixing happens thanks to three helical blades, warped such as to push mixture down towards the center, and make it reflow up on the sides. Clogs are automatically elimitated by the force imposed on the mixture. For maximum efficiency, usage with Ghelfi’s 25 lt mixers bucket is recommended.
This paddle is particularly indicated to mix heavy and viscous materials, such as adhesive mortars, plasters and tile adhesives.
Maximum mixing load depends – among other things – on stirrer’s diameter and electrical mixer tool’s power.
Specifications |
||||
|---|---|---|---|---|
 |
||||
| SKU# | MC/50 | 0450 | 3928 | 3929 |
| Conn. | HEX | M14 | M14 | M14 |
| A | 12 cm | 12 cm | 14 cm | 16 cm |
| L | 50 cm | 60 cm | 60 cm | 60 cm |
| Ø | 10 mm | 14 mm | 14 mm | 14 mm |
| Load | 10-15 Kg | 15-25 Kg | 20-40 Kg | 30-60 Kg |
Specifications |
||||
|---|---|---|---|---|
|
||||
| SKU# | MC/50 | |||
| Conn. | HEX | |||
| A | 12 cm | |||
| L | 50 cm | |||
| Ø | 10 mm | |||
| Load | 10-15 Kg | |||
|
||||
| SKU# | 0450 | |||
| Conn. | M14 | |||
| A | 12 cm | |||
| L | 60 cm | |||
| Ø | 14 mm | |||
| Load | 15-25 Kg | |||
|
||||
| SKU# | 3928 | |||
| Conn. | M14 | |||
| A | 14 cm | |||
| L | 60 cm | |||
| Ø | 14 mm | |||
| Load | 20-40 Kg | |||
|
||||
| SKU# | 3929 | |||
| Conn. | M14 | |||
| A | 16 cm | |||
| L | 60 cm | |||
| Ø | 14 mm | |||
| Load | 30-60 Kg | |||
PRODUCT RANGE
| SKU# | DESCRIPTION |
|---|---|

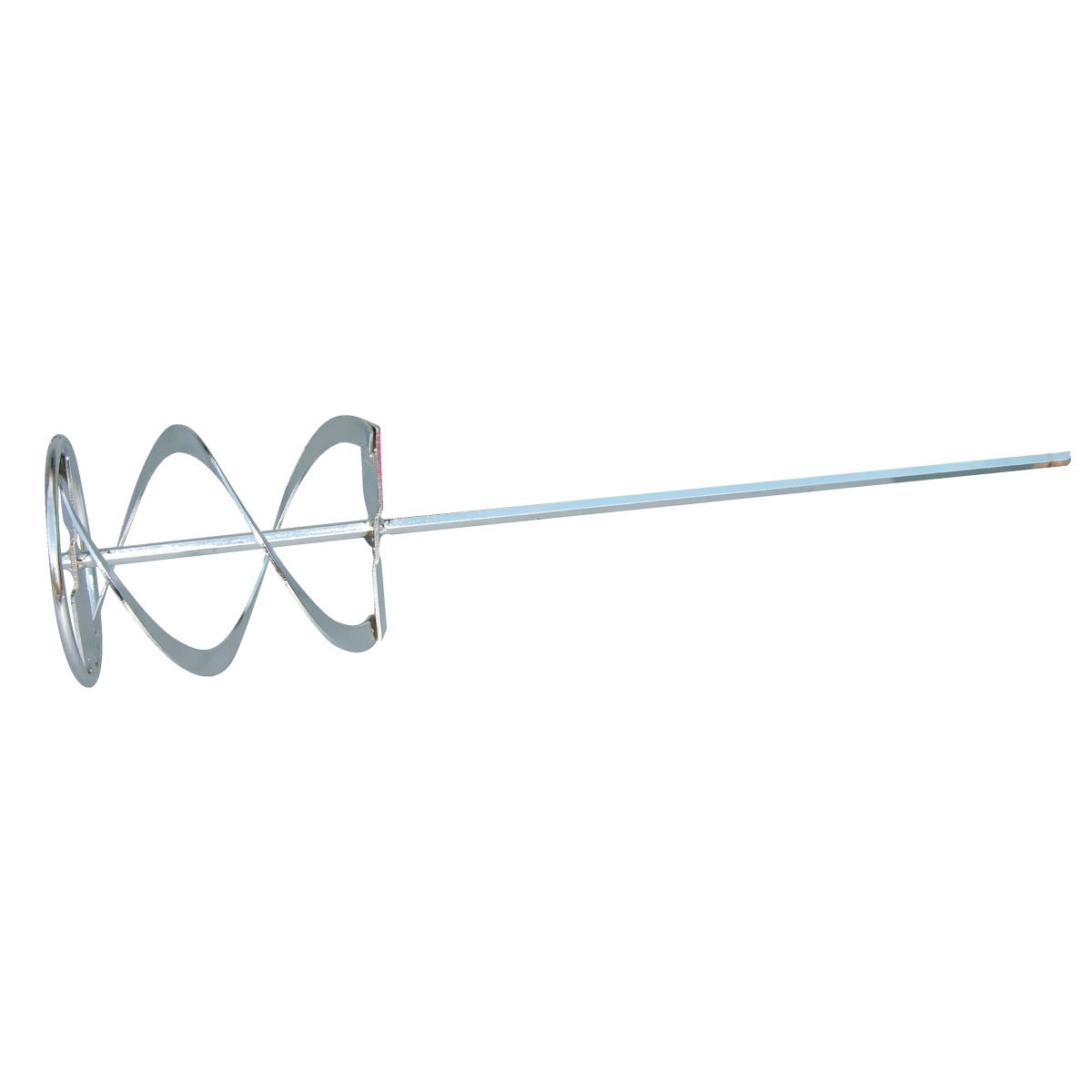

| MC/50 | HELICAL MIXER FOR PLASTERS, MORTARS AND ADHESIVES Ø120MM HEX CONNECTOR |

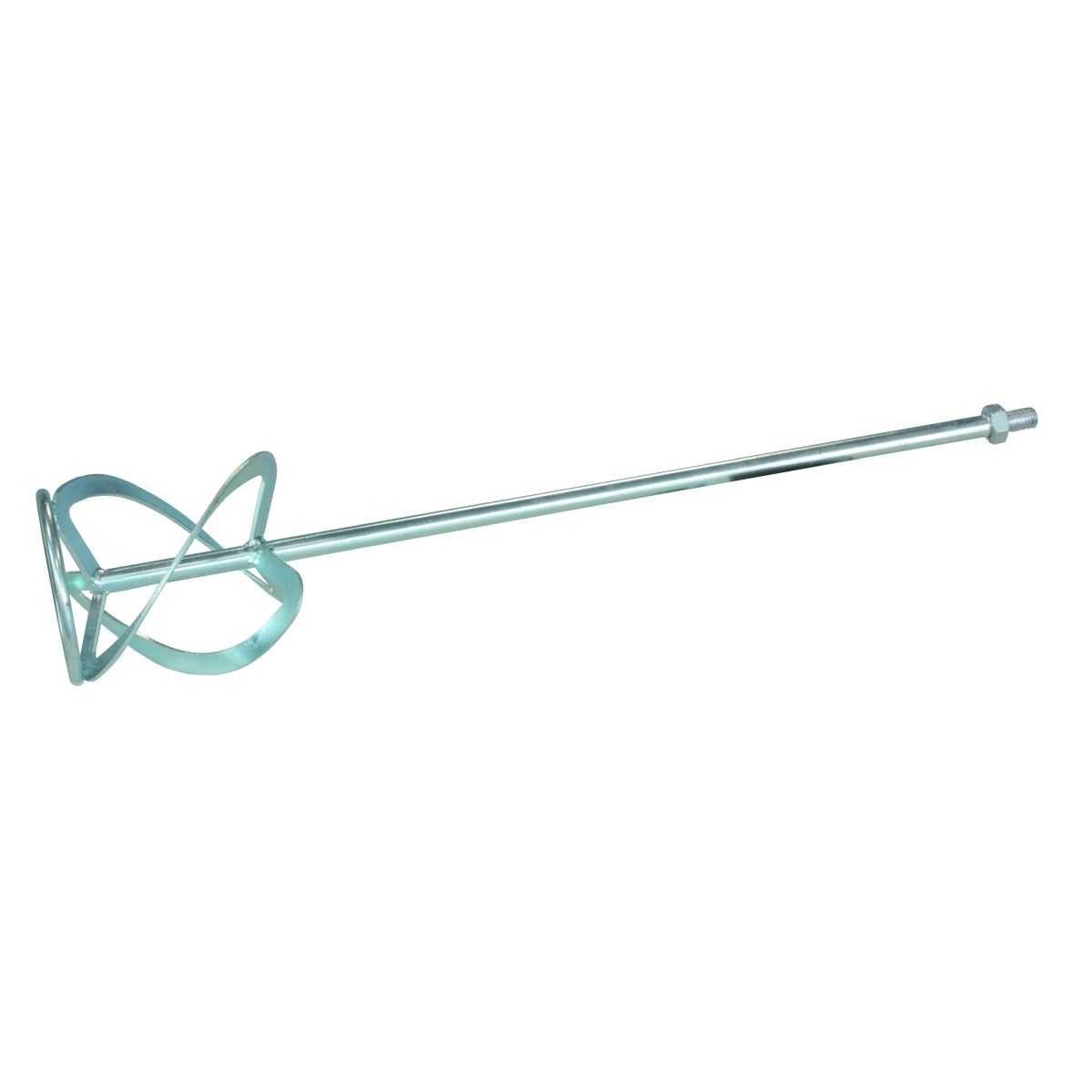

| 0450 | HELICAL MIXER FOR PLASTERS, MORTARS AND ADHESIVES Ø120MM M14 CONNECTOR |
| 3928 | HELICAL MIXER FOR PLASTERS, MORTARS AND ADHESIVES Ø140MM M14 CONNECTOR |
| 3929 | HELICAL MIXER FOR PLASTERS, MORTARS AND ADHESIVES Ø160MM M14 CONNECTOR |
