ZERO – THE UNIVERSAL LEVELLING CLIP
- A levelling system for tiles and slabs
- Wedge technology
- Single-use base clips featuring linear shape, compatible with most third party wedges
- Two alternative levelling wedges, both reusable many times
- ZERO Universal Wedge: can be paired with third party levelling clips
- SPF Patented Wedge: taller back end, and an open visual on application point
- Dual calibration, full-metal tightening plier
- Recommended both for floor and wall tiling
- Supports tiles and slabs of any width and length
- Supports interior and exterior installations
- Manages tiles from 1 to 32mm thickness
- Built-in spacers for joints from 0.5 to 4 mm for interior installs, and 5 mm for exterior installs
- Made in Italy
GHELFI tile levelling systems - leaflet (ENG)Description
COMPATIBLE AND INEXPENSIVE
ZERO is a revolutionary single-use tile levelling clip designed to be compatible with virtually all third party tile levelling wedges on the market today. You can reuse and recycle all those wedges you already have, without being compelled to buy them anew.
ZERO clips manage tiles up to 14 mm thick – a bit more than what so many other systems allow for. The difference is important as nowadays porcelain tiles for interiors do reach up to 13.5 and even 14 mm thickness. ZERO clips support the entire market offering when it comes to ceramic tiles for interior installation with a single product. You don’t need to keep those “taller clips” available anymore, let alone rush buying a bag for an overdue job.
ZERO clips feature built-in joint spacers. A wide range of 6 different joint calibres are available – 0.5, 1, 1.5, 2, 3 or 4 mm – for interiors jobs, plus a bonus 5 mm joint verion for extra thick tiles, or paves, for exterior laying. Every version comes in a different colour for easy identification.
0.5 mm joint
1 mm joint
1.5 mm joint
2 mm joint
3 mm joint
4 mm joint
EXTRA THICK TILES
ZERO clips make tiling easier and better with ceramic tiles for ingerior installation no matter their size – from small to extra large. In addition to that, to support extra thick slabs we develop two other special clips: ZERO23 and ZERO32.
ZERO23 is the clip managing thickened porcelain tiles and slabs for interior or exterior installations up to 23mm thickness, featuring built-in joint spacers of 0.5mm and 1.5mm calibres. When used with ZERO Wedges, or third party wedges, ZERO23 supports tiles at least 13mm thick. Such limit gets down to 9mm when using SPF Wedges.
ZERO32 is instead the ideal clip to level those very thick slabs or paves, up to 32mm. As those are exclusively positioned in exterior settings, ZERO32 comes with a built-in spacer offering a 5mm min. joint calibre. When paired with Zero Wedges, or most third party wedges, ZERO32 manages slabs at least 22mm thick, while SPF Wedges help extend the span down to 18mm minimum thickness.
ZERO23 0.5 mm joint
ZERO23 1.5 mm joint
ZERO32 5 mm joint

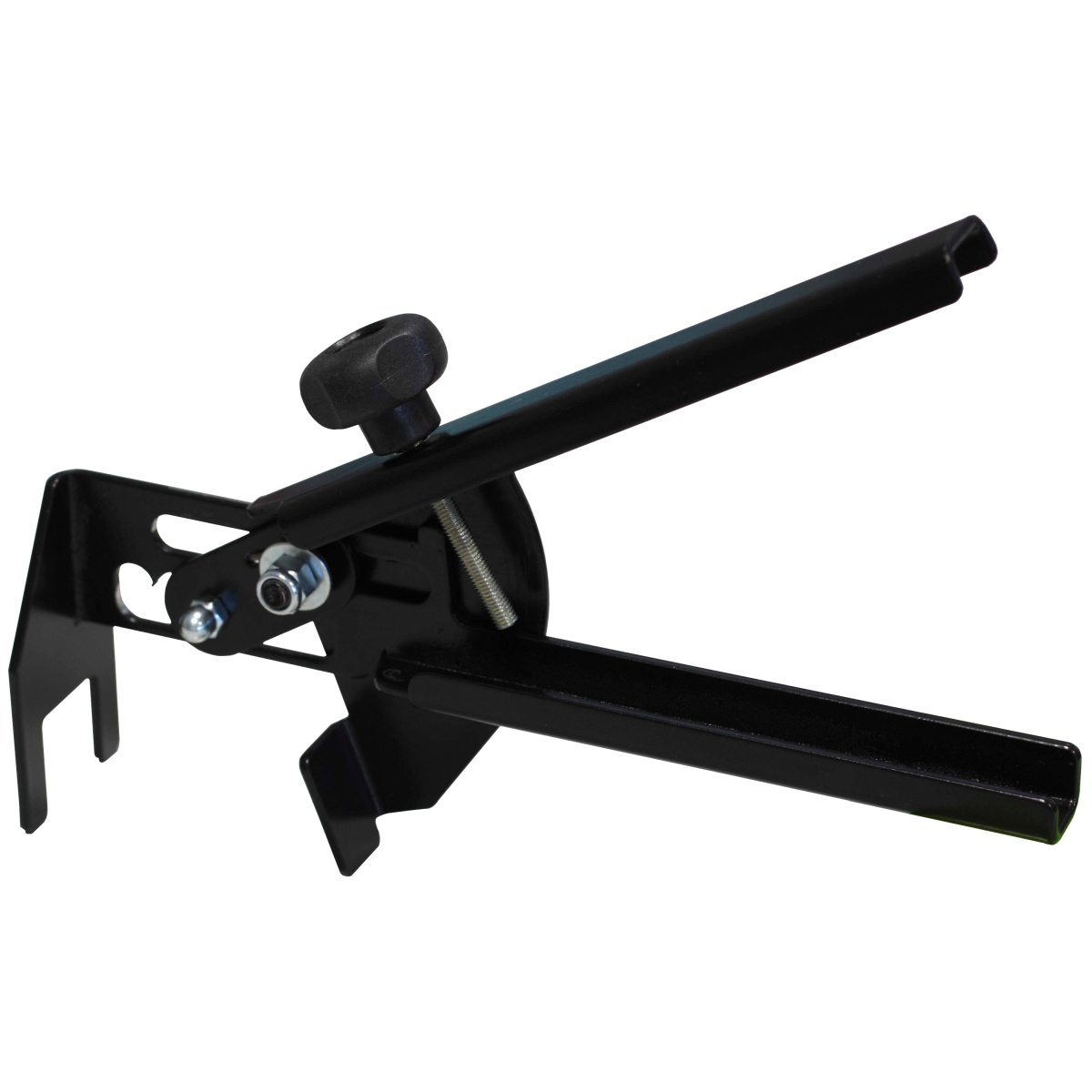

100% METALLIC PLIER
The ZERO Plier is specially designed for wedge-technology tiling and that, too, is compatible with clips and wedges making part of most third party tile levelling systems – in addition to ZERO Clips and Wedges, of course.
Entirely made of sturdy metal, it features screw-based aperture calibration system, and maximum tying calibration and memory.
The ZERO Plier is specially designed for wedge-technology tiling and that, too, is compatible with clips and wedges making part of most third party tile levelling systems – in addition to ZERO Clips and Wedges, of course.
Entirely made of sturdy metal, it features screw-based aperture calibration system, and maximum tying calibration and memory.
A UNIVERSAL WEDGE… OR EVEN TWO OF THEM
Tiling contractor are free to use ZERO Clips with those other brand reusable wedges they already own, with no need to buy new ones.
The ZERO range however does include a levelling wegde featuring shape and size absolutely similar to those of the most common other ones, with which they are interchangeable. That’s why we ultimately call it universal.
Universal ZERO Wedge
SPF Patented Wedge
The Patented SPF Wedge is fully compatible with ZERO Wedges, and can be used with ZERO Clips in all circumstances.
Some contractors prefer SPF Wedges due to its open structure, granding precious visibility on the application point.
In other occasione, SPF Wedge is also preferred as its taller back side allows for a tiles of lower minimum thickness to be supported by the various ZERO Clip families.
Tiling contractor are free to use ZERO Clips with those other brand reusable wedges they already own, with no need to buy new ones.
The ZERO range however does include a levelling wegde featuring shape and size absolutely similar to those of the most common other ones, with which they are interchangeable. That’s why we ultimately call it universal.
Universal ZERO Wedge
The Patented SPF Wedge is fully compatible with ZERO Wedges, and can be used with ZERO Clips in all circumstances.
Some contractors prefer SPF Wedges due to its open structure, granding precious visibility on the application point.
In other occasione, SPF Wedge is also preferred as its taller back side allows for a tiles of lower minimum thickness to be supported by the various ZERO Clip families.
SPF Patented Wedge
Minimum and maximum tile thickness supported by ZERO Clips
| Minimum thickness | Maximum thickness | ||
| ZERO Wedge |
SPF Wedge | ZERO or SPF Wedge |
|
| ZERO | 3 mm | 1 mm | 14 mm |
| ZERO23 | 13 mm | 9 mm | 23 mm |
| ZERO32 | 22 mm | 18 mm | 32 mm |
Minimum and maximum tile thickness supported by ZERO Clips
| Minimum Thickness | ||
| ZERO Wedge |
SPF Wedge | |
| ZERO | 3 mm | 1 mm |
| ZERO23 | 13 mm | 9 mm |
| ZERO32 | 22 mm | 18 mm |
| Maximum Thickness | |
| ZERO or SPF Wedge |
|
| ZERO | 14 mm |
| ZERO23 | 23 mm |
| ZERO32 | 32 mm |
QUANTITIES PER SQUARE METER
Check here below to know how many clips are recommended depending on tile sizes, given in centimetres. When working on particularly wide or long tiles some contractors prefer using one or more additional clips per square meter.
Straight bond laying sample
Running bond laying sample
PRODUCT RANGE
ZERO DISPOSABLE CLIPS – H. MAX 14MM
| SKU# | DESCRIPTION |
|---|---|
| 2244 | ZERO – THE UNIVERSAL LEVELLING CLIP – 0.5MM JOINT – 200PCS BAG |
| 2247 | ZERO – THE UNIVERSAL LEVELLING CLIP – 1.0MM JOINT – 200PCS BAG |
| 2246 | ZERO – THE UNIVERSAL LEVELLING CLIP – 1.5MM JOINT – 200PCS BAG |
| 2248 | ZERO – THE UNIVERSAL LEVELLING CLIP – 2.0MM JOINT – 200PCS BAG |
| 2249 | ZERO – THE UNIVERSAL LEVELLING CLIP – 3.0MM JOINT – 200PCS BAG |
| 2250 | ZERO – THE UNIVERSAL LEVELLING CLIP – 4.0MM JOINT – 200PCS BAG |
ZERO23 DISPOSABLE CLIPS – H. MAX 23MM
| SKU# | DESCRIPTION |
|---|---|
| 2260 | ZERO23 – THE UNIVERSAL LEVELLING CLIP H13-23 – 0.5 MM JOINT – 200PCS BAG |
| 2261 | ZERO23 – THE UNIVERSAL LEVELLING CLIP H13-23 – 1.5 MM JOINT – 200PCS BAG |
ZERO32 DISPOSABLE CLIPS – H. MAX 32MM
| SKU# | DESCRIPTION |
|---|---|
| 2262 | ZERO32 – THE UNIVERSAL LEVELLING CLIP H22-32 – 5.0 MM JOINT – 200PCS BAG |
REUSABLE WEDGES
| SKU# | DESCRIPTION |
|---|---|
| 2942 | ZERO – THE UNIVERSAL LEVELLING WEDGE – 200PCS BAG |
| 2941 | SPF – THE PATENTED LEVELLING WEDGE – 200PCS BAG |
METALLIC PLIER
| SKU# | DESCRIPTION |
|---|---|
| 2200 | ZERO – DUAL REGULATION FULL METAL WEDGE LEVELLING SYSTEMS PLIER – 1PC CARTON BOX |
